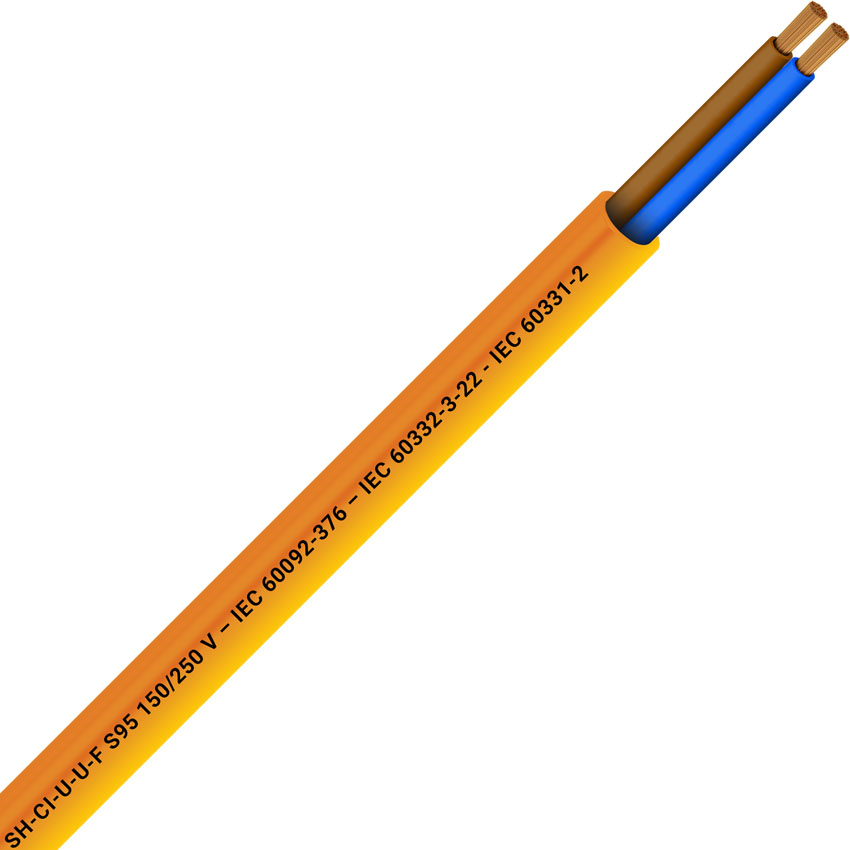

Unarmoured Overall Screened 2x1.5 Orange

SH-CI-U-U-F S95

Control and instrumentation, unscreened, unarmoured, fire resisting shipboard cables rated 150V/250V

The SH-CI-U-U-F S95 cable is a fire-resistant control and instrumentation cable designed for shipboard applications. It is unscreened and unarmoured, making it suitable for installations where these features are not required. The cable is rated for 150V/250V operation and offers excellent fire resistance properties, ensuring continued operation of critical systems during a fire.

Technical Data

• Conductor: Bare (optional tinned) copper, Class 5 according to IEC 60228
• Insulation: Silicon compound S95 according to IEC 60092-360. Thickness according to IEC 60092-376
• Core Identification: Black with numbers 1, 2, 3, … with or without green/yellow
• Outer Sheath: SHF1 compound according to IEC 60092-360. Thickness according to IEC 60092-376. Colour: orange (or other colour agreed). Outer diameter according to IEC 60092-350 annex D
• Marking: UNIKA (Italy) – SH-CI-U-U-F S95 150/250 V 95°C (n° cores) x (n° units) x (cross-section) – IEC 60092-376 – IEC 60332-3-22 – IEC 60331-21 – IEC 60331-1 (for cable diameter > 20mm) / IEC 60331-2 (for cable diameter ≤ 20mm) – traceability code
• Rated Conductor Temperature (fixed installation): 90°C
• Minimum Installation Temperature: -15 °C
• Minimum Bending Radius: 4D for cables having overall diameter not above 25 mm, 6D for cables having overall diameter above 25 mm (D is the overall diameter)
• Fire Behaviour:
  • IEC 60332-3-22 not fire propagation
  • IEC 60332-1-2 not flame propagation
  • IEC 60331-21, IEC 60331-1 (2) fire resistant
  • IEC 60754-1 halogen content
  • IEC 60754-2 pH and conductivity
  • IEC 60684-2 fluorine content
  • IEC 61034 smoke emission

SKU LAPP-NL027S
MPN NL027S
