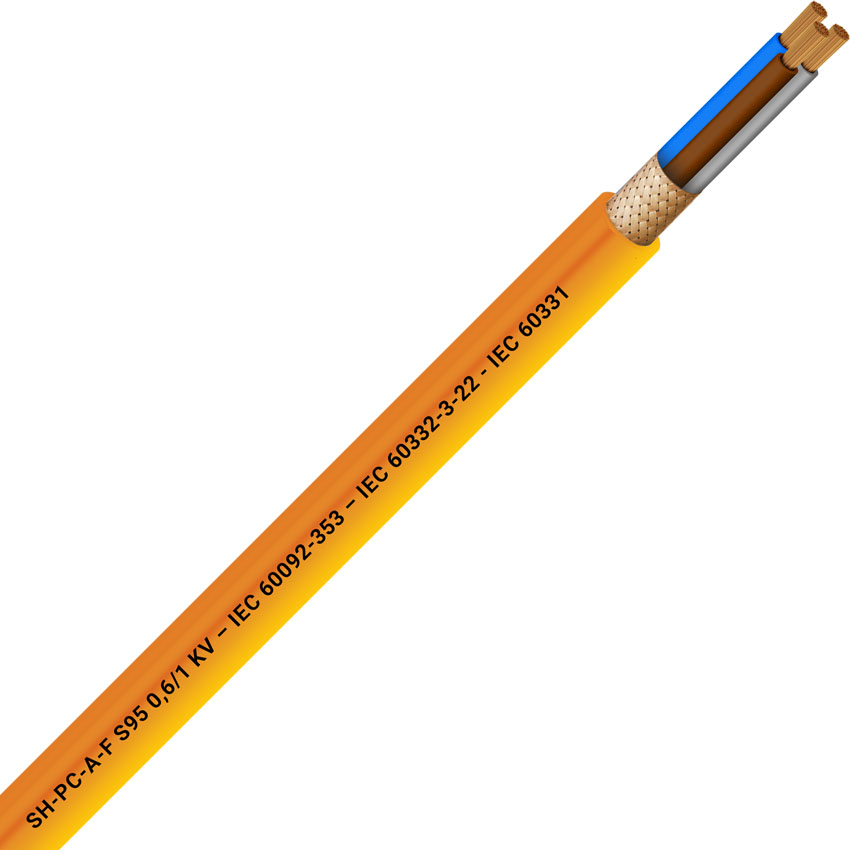

Armoured Multicore 3x6 Orange

SH-PC-A-F S95

Single and multicore, armoured, fire resistant power and control shipboard cables rated 0.6/1 kV

These are power and control cables designed for shipboard applications. They are single and multicore, armoured for mechanical protection, and fire-resistant to maintain circuit integrity during a fire. They are rated for 0.6/1 kV.

Technical Data

• Conductor Bare (optional tinned copper) class 5 according to IEC 60228
• Insulation Silicon compound S95 according to IEC 60092-360. Thickness according to IEC 60092-353
• Core Identification (Preferential) 1 core: black; 2 cores: brown, blue; 3 cores: black, grey, brown or (blue, brown, green/yellow); 4 cores: brown, black, grey, blue or green/yellow; 5 cores: blue, brown, black, grey, black or green/yellow; From 5 cores: black numbered (with or without green/yellow)
• Bedding Yarn fillers and non-hygroscopic tape or extruded inner sheath without halogen
• Inner Sheath (Optional) Halogen free compound
• Armouring Bare copper (upon request tinned copper or galvanized steel wire braid). Minimum coverage 90%. To reduce electromagnetic interferences, additional metallic tape underneath the copper braid may be inserted
• Outer Sheath SHF1 compound according to IEC 60092-360. Thickness according to IEC 60092-353. Colour: orange (or other colour agreed). Outer diameter according to IEC 60092-350 annex D
• Marking (Cable diameter > 20mm) UNIKA (Italy) – SH-PC-A-F S95 0,6/1 kV 95°C (core number) x (cross-section) – IEC 60092-353 – IEC 60332-3-22 – IEC 60331-21 – IEC 60331-1 – traceability code
• Marking (Cable diameter ≤ 20mm) UNIKA (Italy) – SH-PC-A-F S95 0,6/1 kV 95°C (core number) x (cross-section) – IEC 60092-353 – IEC 60332-3-22 – IEC 60331-21 – IEC 60331-2 – traceability code
• Rated conductor temperature for fixed installation 90°C
• Minimum installation temperature -15°C
• Minimum bending radius 6D: D is the overall diameter
• Fire behaviour IEC 60332-3-22 not fire propagation, IEC 60332-1-2 not flame propagation, IEC 60331-21, IEC 60331-1 fire resistant, IEC 60754-1 halogen content, IEC 60754-2 pH and conductivity, IEC 60684-2 fluorine content, IEC 61034 smoke emission

SKU LAPP-N3W40S
MPN N3W40S
