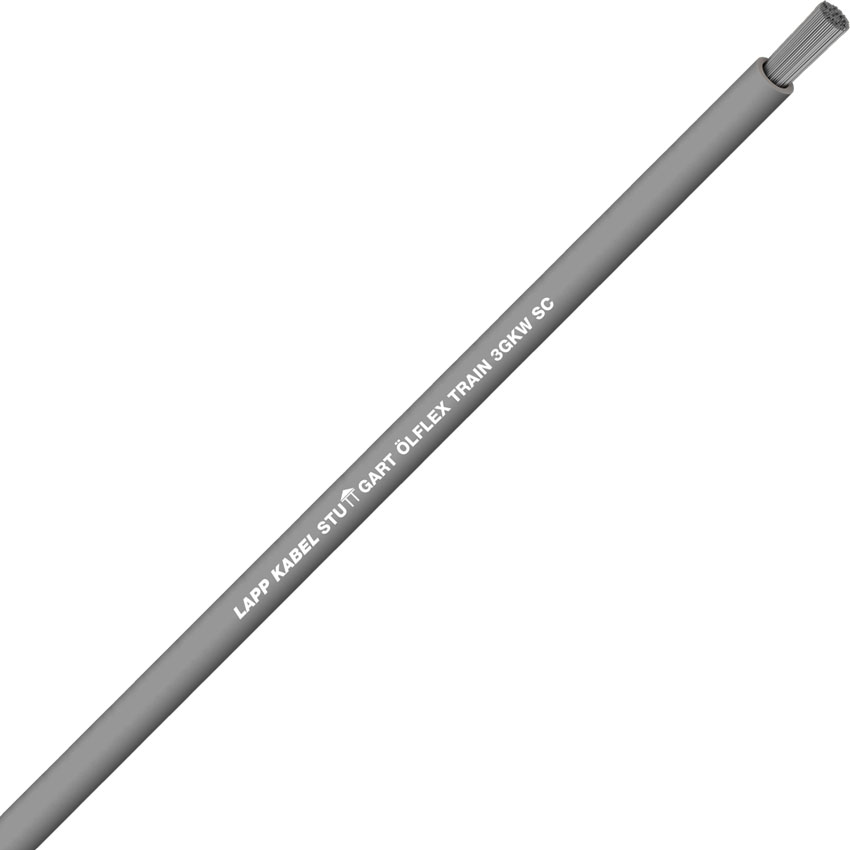

Train 3Gkw 600V 1X1 GY

Benefits

• High flexibility and slim diameters enable small bending radii at fixed installation
• Resistant to mechanical influences in harsh environmental conditions
• Expanded temperature range
• Reduced formation of toxic gases and fire spreading in the event of fire increase the protection against damage to persons and property

Application range

• For fixed and protected installations inside or outside of railed vehicles and busses
• Suitable for the connection of fixed and moving objects such as lamps, heating, electrical equipment, wiring of vehicles, terminal boxes and power supply

Product features

• Halogen-free (IEC 60754-1) & No corrosive gases (IEC 60754-2)
• No toxic gases (EN 50305, BS 6853)
• Low smoke density (IEC 61034-2)
• Flame retardant (IEC 60332-1-2)
• No fire spreading (EN 50305, BS6853)

Norm references / Approvals

• EN 50264-3-1, type M
• BS 6853 ( Interior use Ia, Ib,Ⅱ & Exterior use Ia, Ib,Ⅱ)
• EN 45545-2 HL1, HL2, HL3
• Compliant with NFPA 130

Product Make-up

• Conductor : Tinned copper strand, fine wired
• Inner Insulation : Electron beam cross-linked polyolefin copolymer, Natural colour
• Outer Insulation : Electron beam cross-linked polyolefin copolymer
• Outer Insulation colour : Black or green-yellow

• Conductor stranding Fine wired acc. to IEC 60228 class 5

Minimum bending radius

• Fixed installation : ≤ 12: 4 x OD / 3 x OD*,
• > 12 : 5 x OD / 4 x OD*, * for careful bending, once at connecting terminal

• U /U AC 0.6 / 1.0 kV, Um AC 1.2kV, Vo DC 0.9kV

Temperature range

• Fixed installation : -40°C up to +125°C max.
• Occasional Flexing : -35°C up to + 90°C max
