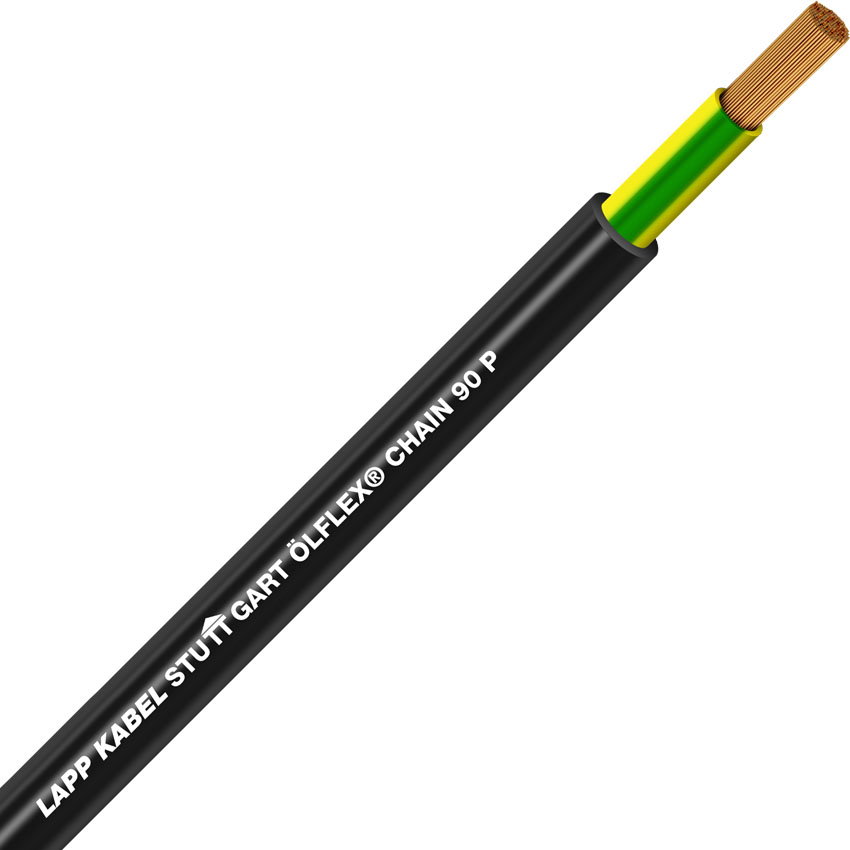

UL Drag Chain Extra Fine Wire 1G35

Benefits

• Multi-standard certification reduces part varieties and saves costs
• Multifunctional application possibilities
• Under consideration of the temperature range also suitable for flexible outdoor use
• Also suitable for fixed installation where space is limited
• Certified for the USA and Canada for export-oriented machine, appliance and apparatus manufacturers

Application range

• In power chains or moving machine parts
• For internal wiring of electric and electronic equipment in switch cabinets
• Specially designed for power circuits of servomotors driven by frequency converters
• This cable can substitute multi-core power cables where space requirements or minimum bending radii cause problems
• Test systems in the automotive industry, vehicles and stationary fuel cell systems

Product features

• Flame-retardant according to IEC 60332-1-2 & CSA FT1
• High oil-resistance
• Low-adhesive surface

Norm references / Approvals

• Based on VDE 0250 / 0285
• UL-AWM-Style 10107, cRU AWM II A/B FT1  ≥150mm²
• CSA AWM IA/B IIA/B FT 1 ≤ 120 mm²
• UL File No. E63634
• For use in power chains: Please comply with assembly guideline Appendix T3

Product Make-up

• Extra-fine wire strand made of bare copper wires (class 6)
• Non-woven wrapping
• Core insulation: PVC
• PVC outer sheath, black (similar RAL 9005)
