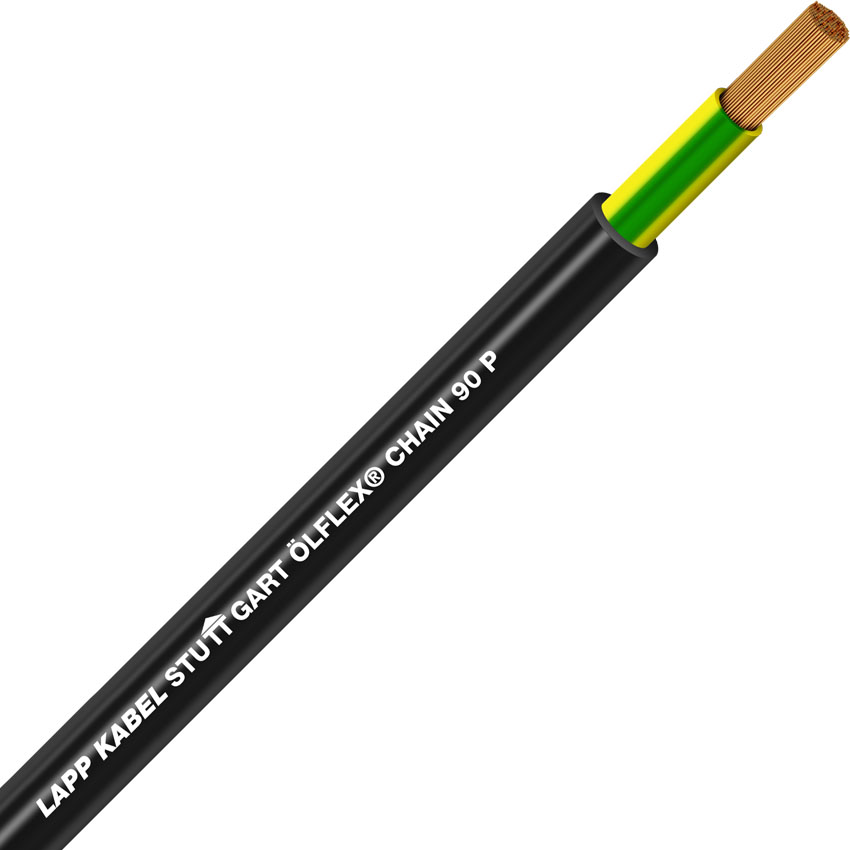

UL PUR Drag Chain 1G50

Benefits

• Allows much faster speed and accelerations which increases the economic efficiency of the machines
• Multi-standard certification reduces part varieties and saves costs
• Increased durability under harsh conditions thanks to robust PUR outer sheath
• Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
• Wide temperature range for applications in harsh climatic environments
• Longer cable installation lengths thanks to low mutual capacitance cable design

Application range

• In power chains or moving machine parts
• For internal wiring of electric and electronic equipment in switch cabinets
• Specially designed for power circuits of servomotors driven by frequency converters
• This cable can substitute multi-core power cables where space requirements or minimum bending radii cause problems
• Test systems in the automotive industry, vehicles and stationary fuel cell systems
• For indoor and outdoor use

Product features

• Flammability:
  - Halogen-free acc. to VDE 0472-815
  - Flame retardant acc. to IEC 60332-1-2 or
  UL/cUL VW-1, FT1
  - No flame propagation acc. to
  IEC 60332-3-24 Cat. C or /-25 Cat. D
• Good weather, UV and oil resistance
• Abrasion and notch-resistant
• Flexible at low temperatures
• Low-capacitance design

Norm references / Approvals

• USA: UL AWM Style 11624, VW-1
  Canada: cUL AWM I/II A, FT1
• UL File No. E63634
• For use in power chains: Please comply with assembly guideline Appendix T3

Product Make-up

• Extra-fine wire strand made of bare copper wires (class 6)
• Core insulation: TPE compound
• PUR outer sheath, black (similar RAL 9005)
