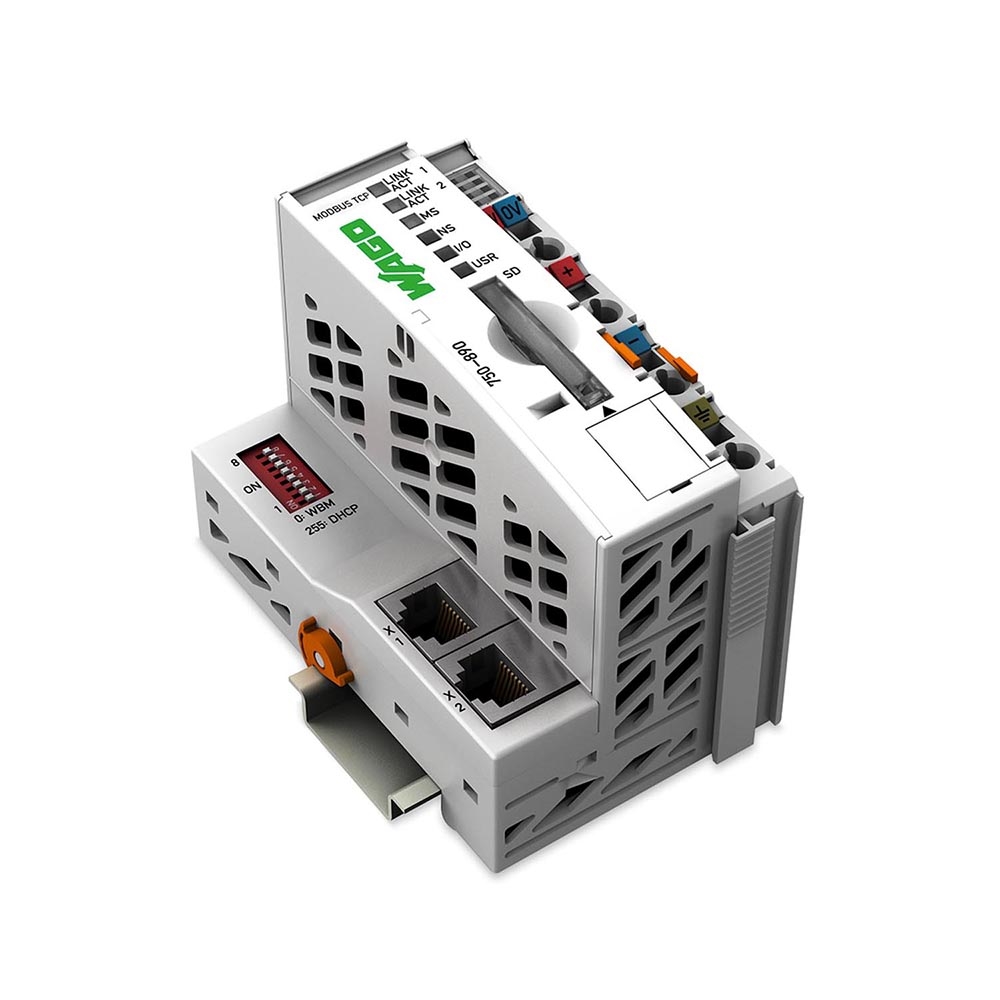

Controller Modbus TCP 4th Gen 2 x ETHERNET

Programmable controller within ETHERNET networks in conjunction with the WAGO I/O System

Free shipping on Web orders over $100

$1834.00

(Each excl GST)

On Request

Quantity Breaks

25+

$1,834.00

SKU: WAGO-750-890 Manufacturer part number: 750-890 Manufacturer: WAGO

Qty:

Overview
Contact Us
Downloads

Technical data

Communication	Modbus (TCP, UDP)
ETHERNET protocols	HTTP(S); BootP; DHCP; DNS; SNTP; FTP(S); SNMP
Visualization	Web-Visu
CPU	32 bits
Programming languages per IEC 61131-3	Instruction List (IL); Ladder Diagram (LD); Function Block Diagram (FBD), Continuous Function Chart (CFC); Structured Text (ST); Sequential Function Chart (SFC)
Programming environment	WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)
Configuration options	WAGO-I/O-CHECK; Web-Based Management; CODESYS Library
Baud rate (communication/fieldbus 1)	10/100 Mbit/s
Baud rate	10/100 Mbit/s
Transmission medium (communication/fieldbus)	Twisted Pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length
Transmission performance	Class D per EN 50173
Program memory	8 MB
Data memory	8 MB
Non-volatile software memory	32
Type of memory card	SD and SDHC up to 32 GB (all guaranteed properties only valid with WAGO Memory Card)
Memory card slot	Push-push mechanism; Cover lid (sealable)
Number of modules per node (max.)	250
Number of modules without a bus extension (max.)	64
Input and output process image (fieldbus) max.	1020 Worte/1020 Worte
Indicators	LED (LINK/ACT) green: Network connection via ports 1 … 2; LED (MS, NS) red/green: Status of node, network; LED (I/O, USR) red/green/orange: Local data bus status, status programmable by user; LED (A, B) green: System power supply status, field supply
Supply voltage (system)	24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP® connection)
Input current (typ.) at nominal load (24 V)	500mA
Power supply efficiency (typ.) at nominal load (24 V)	90%
Current consumption (5 V system supply)	440mA
Total current (system supply)	1,700mA
Supply voltage (field)	24 VDC (-25 … +30 %); via power jumper contacts
Current carrying capacity (power jumper contacts)	10A
Number of outgoing power jumper contacts	3
Isolation	500 V system/field

SKU WAGO-750-890

GTIN 4055143821407
