NSGAFÖU 1.8/3 kV is a flexible, VDE-approved single-core rubber cable used for power connections requiring high mechanical strength. It is commonly installed inside switchboards, control cabinets, industrial machinery and electrical equipment.
When installed according to the relevant requirements, NSGAFÖU cable is suitable for short-circuit-proof and earth-fault-proof wiring in electrical systems operating up to 1,000 V.
LAPP Australia supplies a wide range of NSGAFÖU 1.8/3 kV single-core rubber cables. The range is locally stocked, available for delivery across Australia and supported by an experienced Australian team that can assist with product selection and technical enquiries.
What does NSGAFÖU mean?
NSGAFÖU is the designation for a standardised VDE cable type. It is not a proprietary LAPP product name.

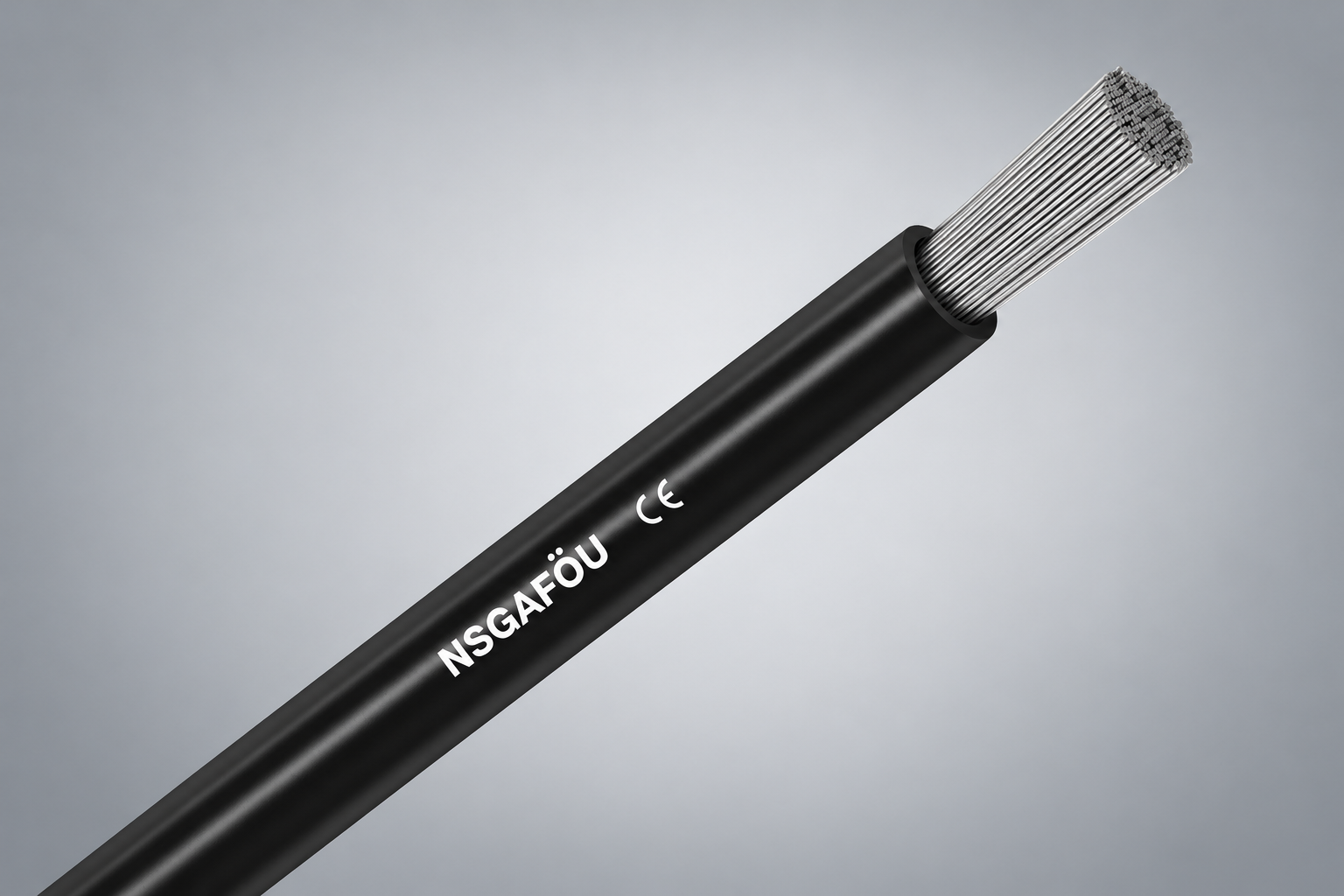

The cable is manufactured according to DIN VDE 0250-602 and typically features:
- A fine-stranded, tinned-copper conductor
- EPR rubber conductor insulation
- A durable rubber outer covering
- Class 5 conductor flexibility
- Oil-resistant properties
- Flame-retardant performance
- A rated voltage of 1.8/3 kV
This construction gives the cable the electrical insulation, flexibility and mechanical protection needed for demanding equipment wiring.
The name is also commonly written online as NSGAFOU without the umlaut. Both terms refer to the same cable type.
What does the 1.8/3 kV rating mean?
The voltage rating is written as U₀/U:
- U₀, 1.8 kV: rated voltage between the conductor and earth
- U, 3 kV: rated voltage between conductors
The 1.8/3 kV rating provides a higher insulation level than standard low-voltage panel wire. This supports its use in installations where mechanical damage could increase the risk of a short circuit or earth fault.
It does not mean the cable can only be used in 3 kV systems. NSGAFÖU may be used for short-circuit-proof and earth-fault-proof installation in systems up to 1,000 V when the required installation conditions are met.
What is a short-circuit-proof cable?
A short circuit occurs when current flows through an unintended low-resistance connection between live conductors. This can produce a high fault current, heat and equipment damage.
A short-circuit-proof cable has the insulation strength and mechanical construction needed to reduce the risk of a conductor-to-conductor fault.
The term does not mean the cable prevents every electrical fault. Cable sizing, routing, protection devices and installation methods must still comply with the relevant electrical standards and project requirements.
What does earth-fault-proof mean?
An earth fault occurs when a live conductor makes unintended contact with earth or an exposed conductive component connected to earth.
Earth-fault-proof installation reduces the likelihood of this contact occurring if the cable is exposed to mechanical stress or insulation damage.
NSGAFÖU supports this type of installation through its high mechanical strength, rubber insulation and protective outer covering. Correct routing, termination and circuit protection remain part of the complete electrical design.
What are the benefits of NSGAFÖU cable?
Short-circuit and earth-fault protection
NSGAFÖU cable can support short-circuit-proof and earth-fault-proof installation up to 1,000 V when used with an approved installation method.
Flexible conductor
The fine-stranded Class 5 conductor makes the cable easier to route through switchboards, machinery and control cabinets than a solid or coarse-stranded conductor.
High mechanical strength
Its rubber insulation and outer covering provide added protection in applications exposed to mechanical stress.
Oil resistance
NSGAFÖU can be used in dry and oily industrial environments, making it suitable for many machinery and equipment applications.
VDE-approved construction
The cable is approved according to VDE 0250-602, providing engineers and equipment manufacturers with a recognised cable specification.
Broad choice of conductor sizes
LAPP Australia lists sizes from 1.5 mm² to 300 mm², supporting both smaller equipment connections and higher-current power applications.
Local Australian stock and support
LAPP Australia carries a wide range of NSGAFÖU cable sizes locally, helping customers reduce sourcing delays and keep projects moving.
Customers also benefit from:
- Australia-wide delivery
- Local product availability
- Support from an Australian customer service and technical team
- Online pricing and stock information
- Cable supplied in a broad range of conductor sizes
- Help selecting the right cable for the application
Where is NSGAFÖU cable used?
Common applications include:

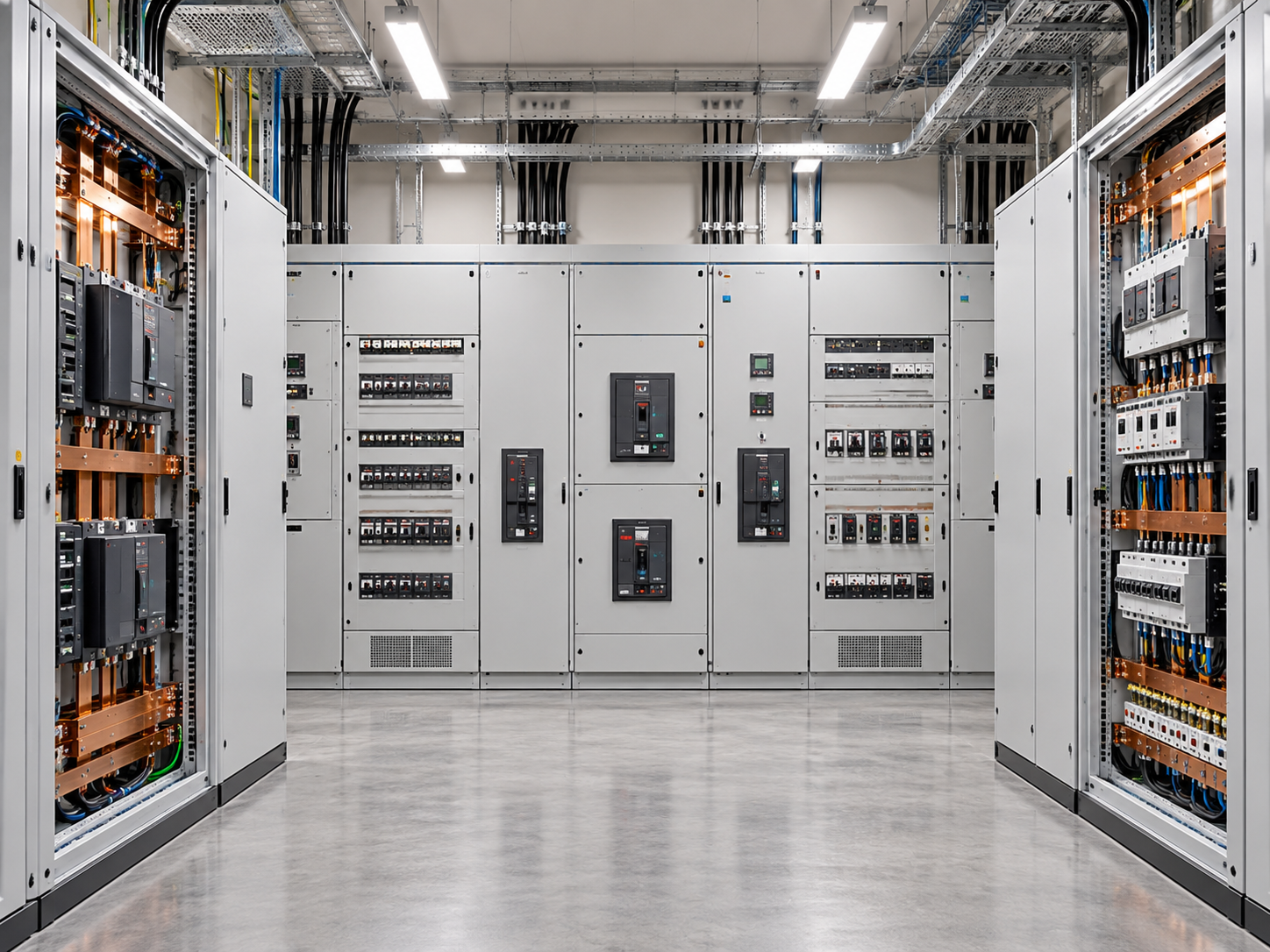

Switchboards and distribution boards

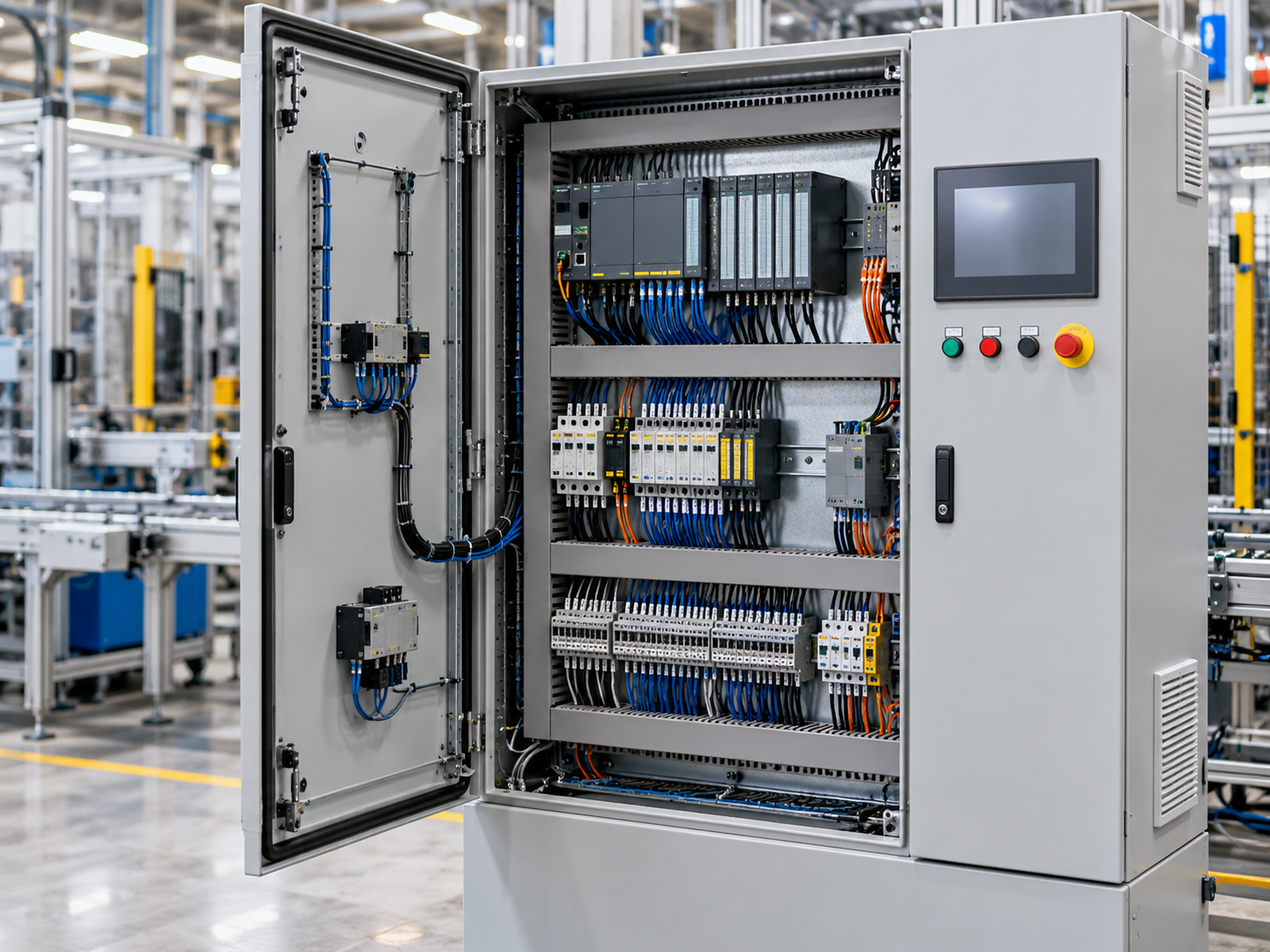

Control cabinets and electrical panels

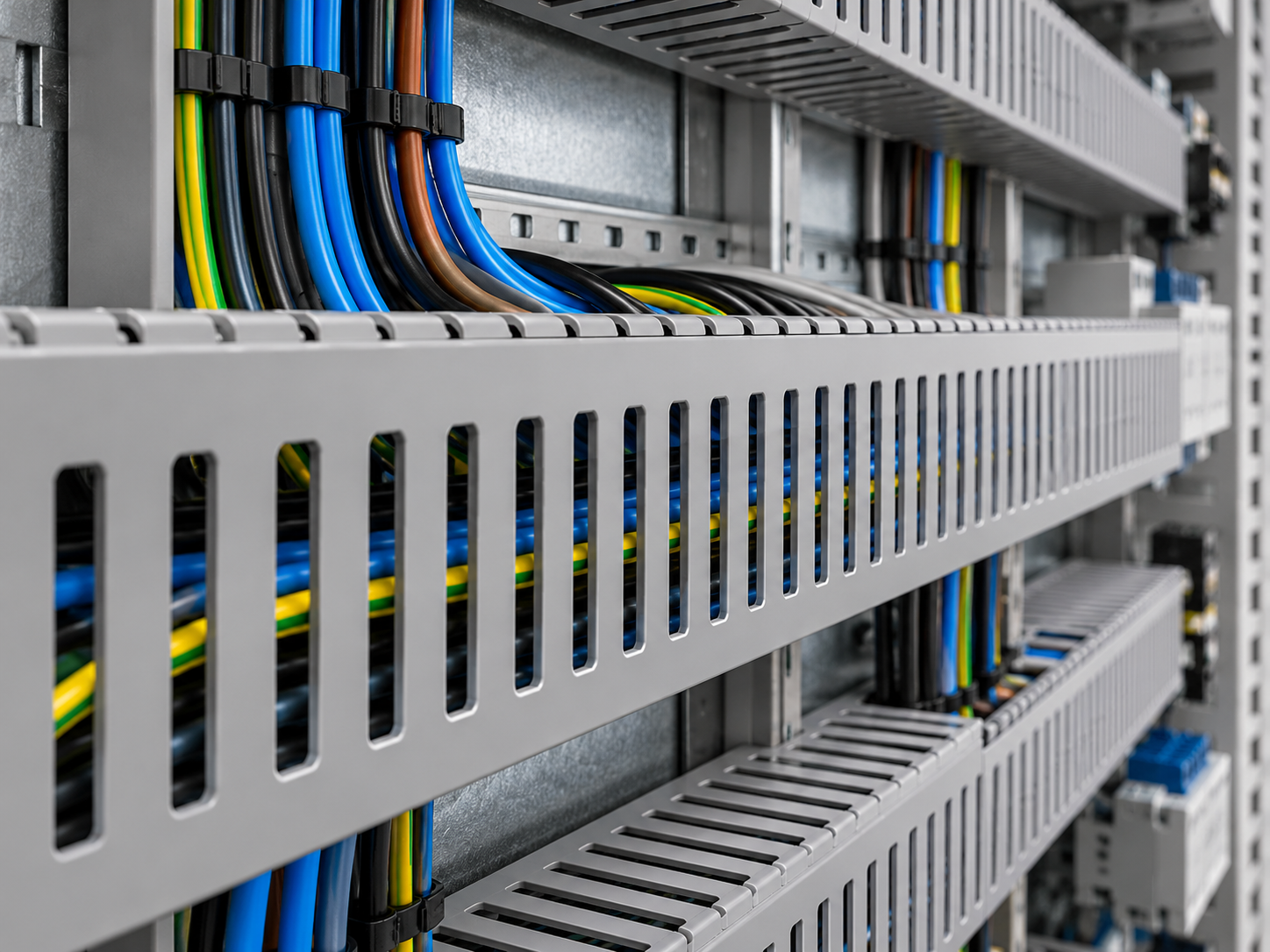

Wiring circuits inside industrial machines

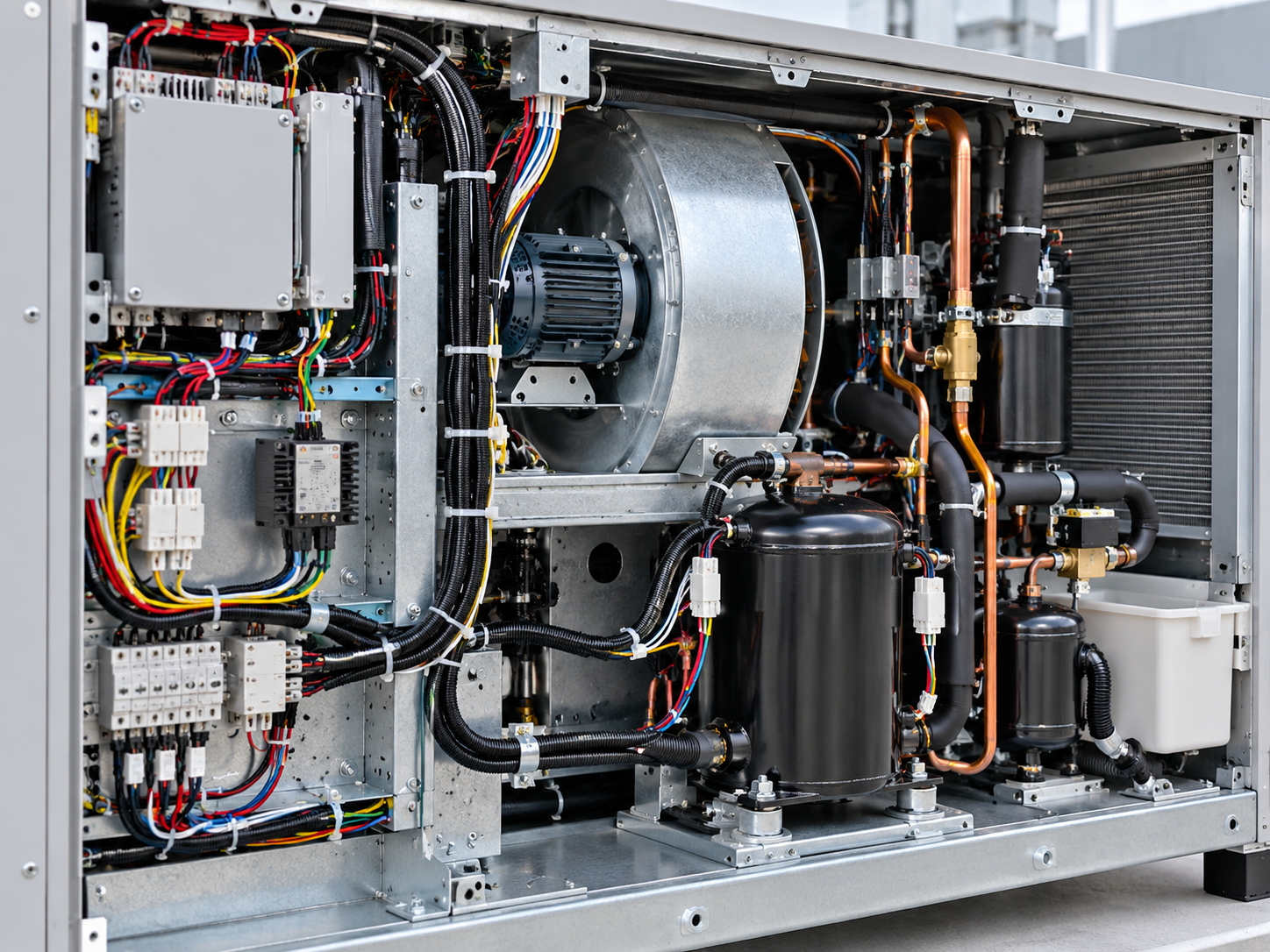

Electrical equipment and appliance wiring

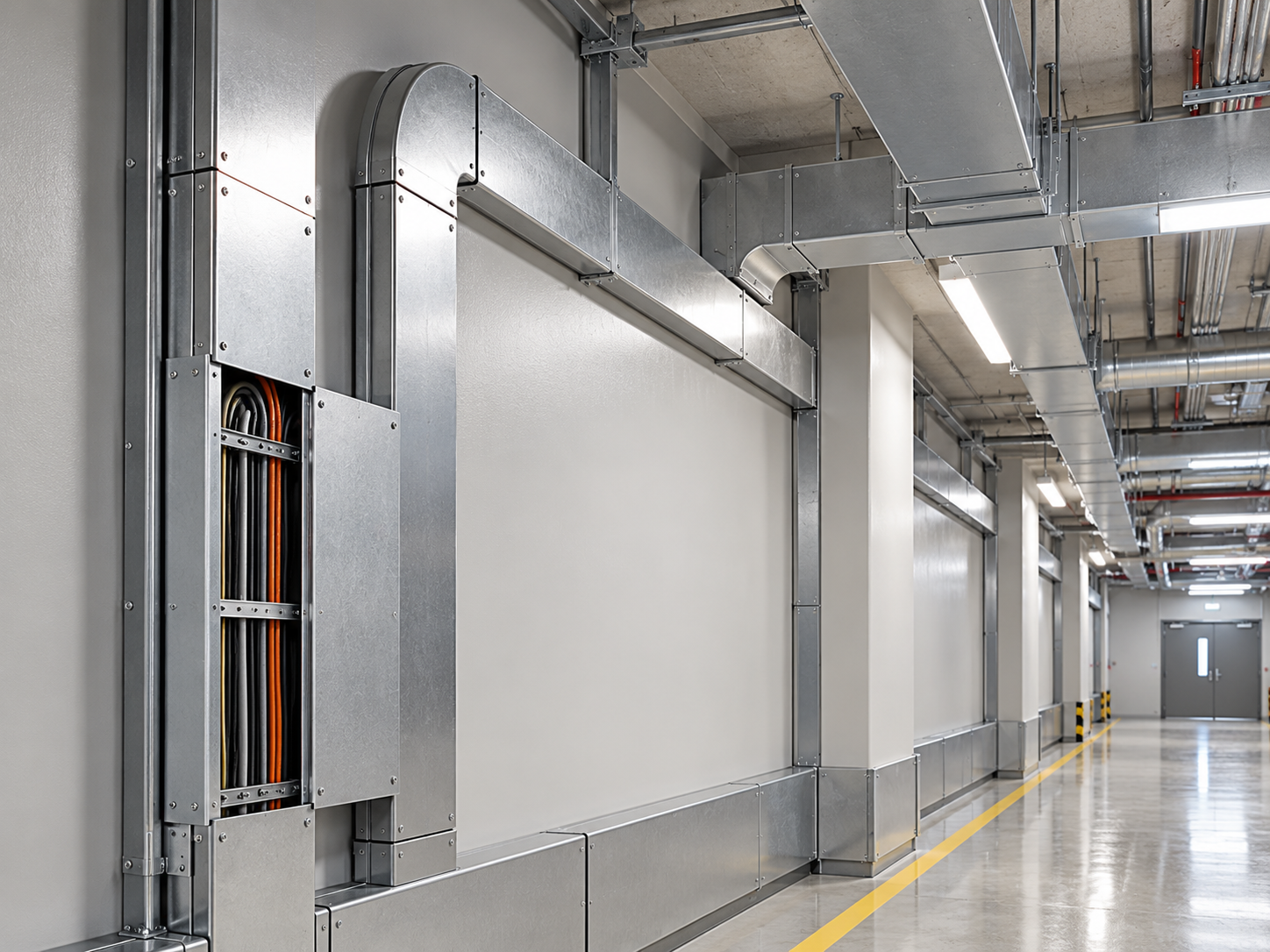

Enclosed ducts and installation channels

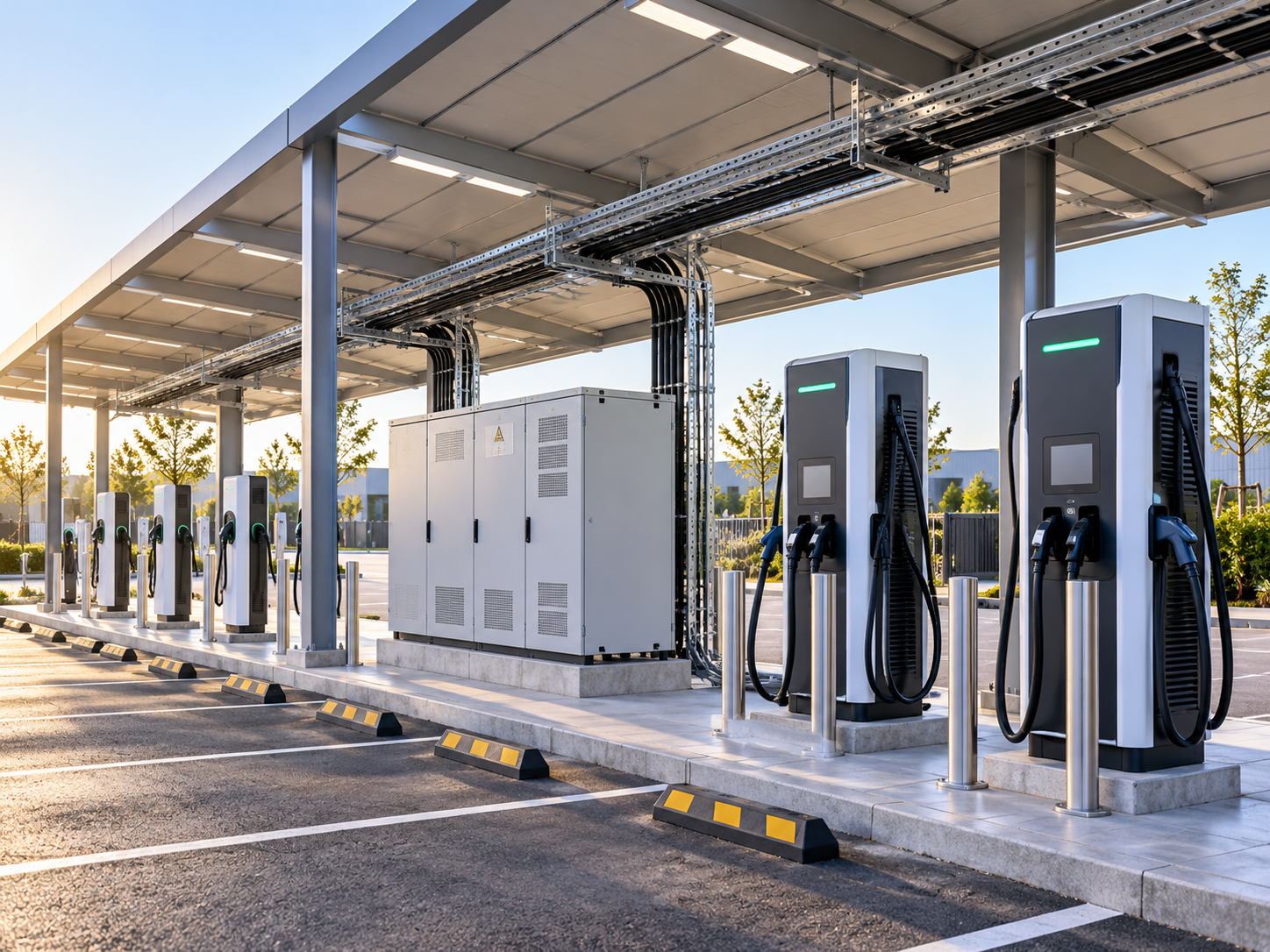

AC and DC charging infrastructure

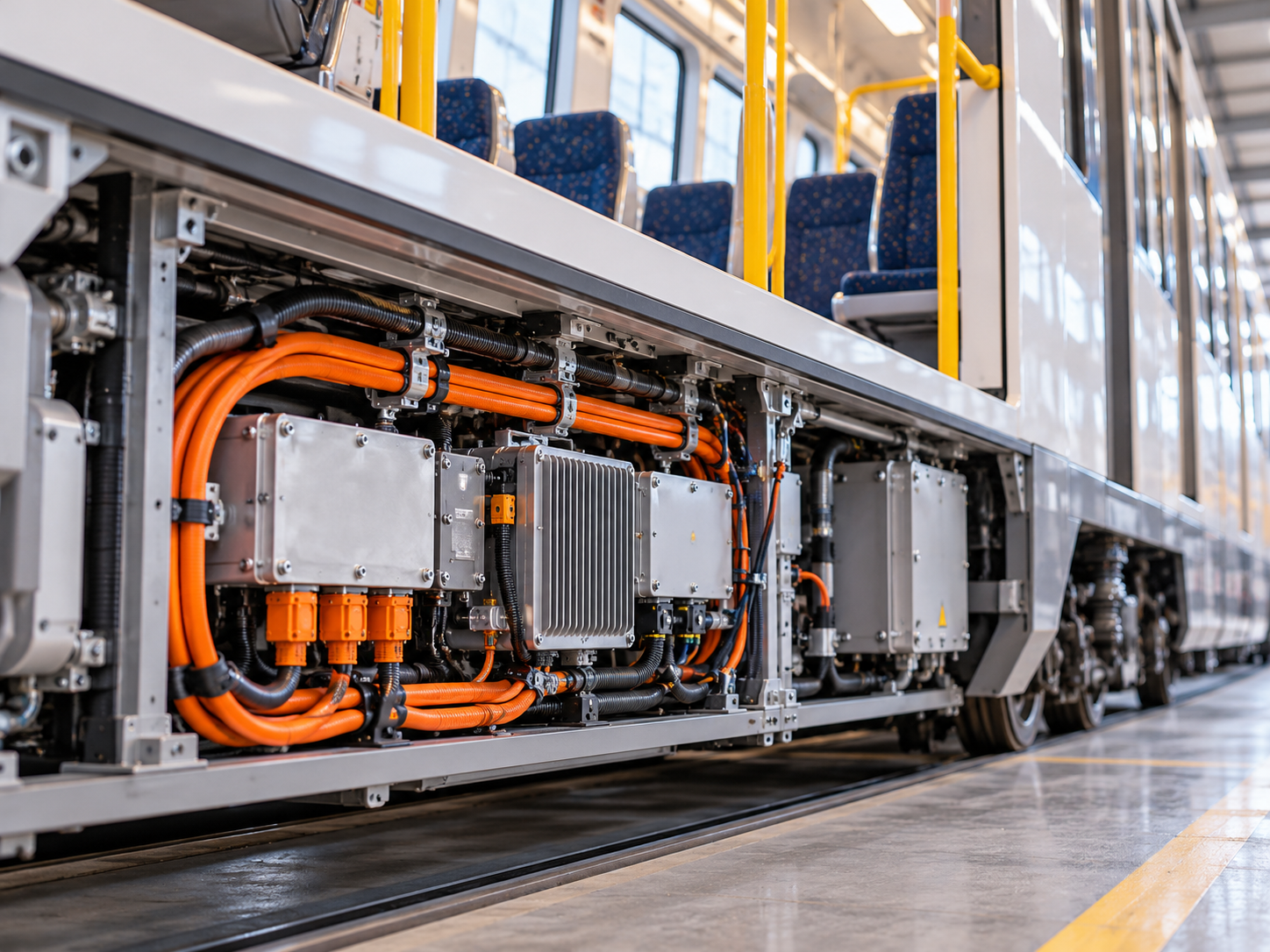

Rail vehicles and buses where the relevant standards permit

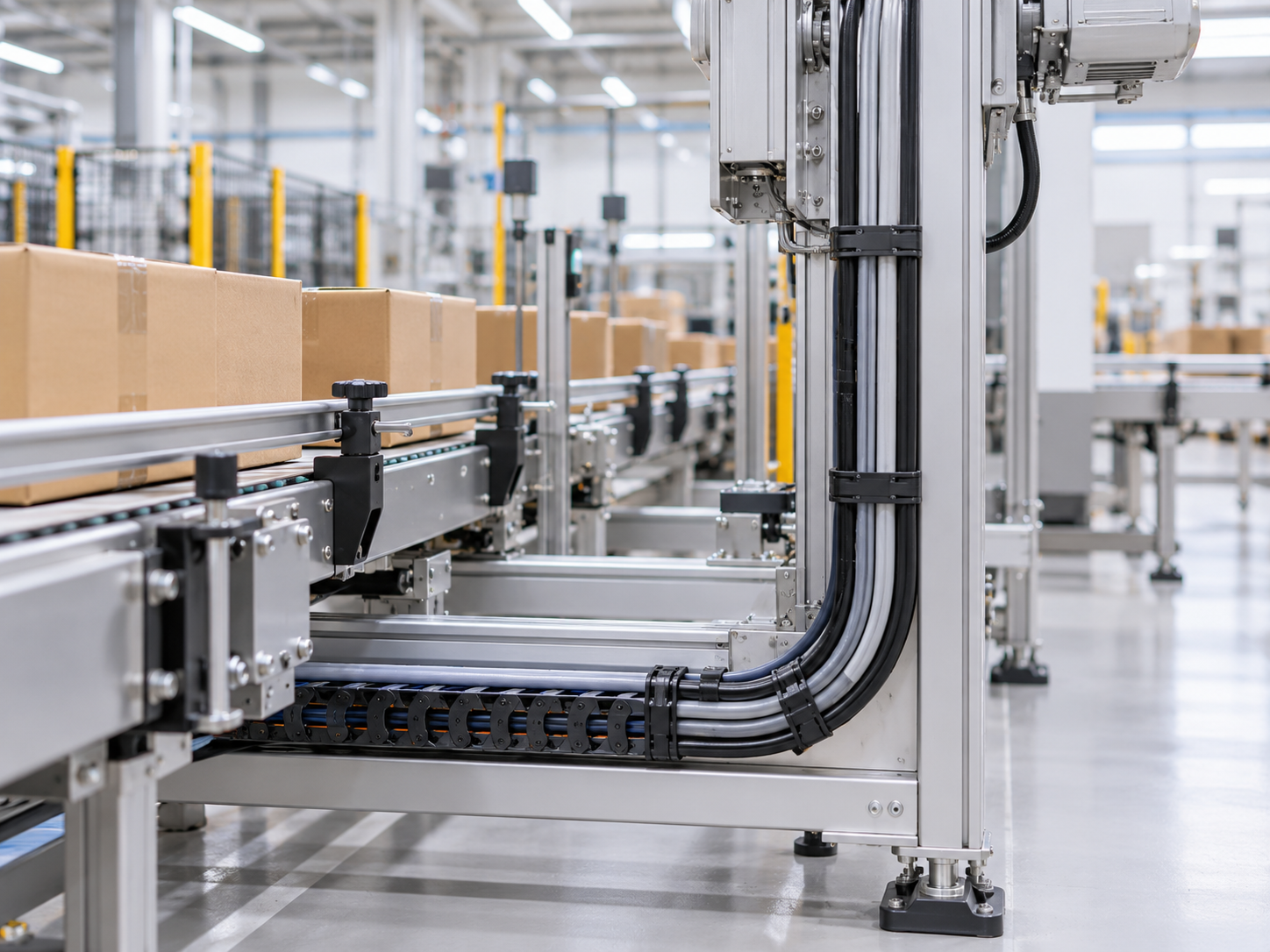

Dry or oily industrial environments

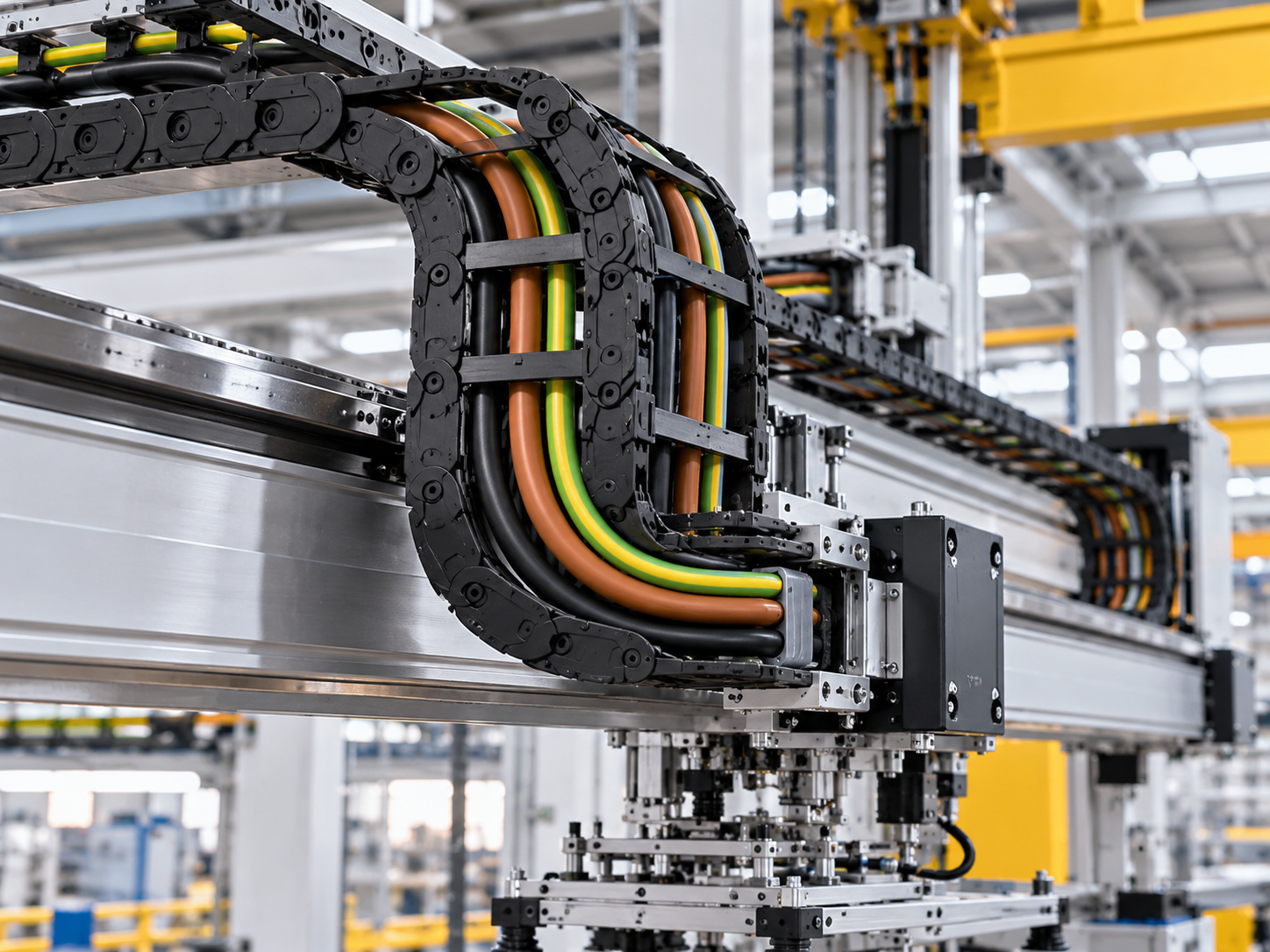

Connections requiring flexible single-core wiring
The cable is primarily intended for fixed installation. Flexible construction makes routing and termination easier, but this does not automatically make it suitable for continuous movement.
Is NSGAFÖU suitable for switchboard wiring?
Yes. Switchboards, control cabinets and distribution equipment are among the main applications for NSGAFÖU cable.
The fine-stranded conductor assists with installation in confined areas, while the rubber insulation and outer covering provide a high level of electrical and mechanical protection.
For example, NSGAFÖU 1.8/3 kV 1 x 2.5 mm² may suit smaller equipment connections. Larger conductor sizes are available for applications carrying higher current.
Is NSGAFÖU suitable for continuous movement?
NSGAFÖU has a flexible Class 5 conductor, but it is primarily designed for fixed installation and occasional movement.
It should not be selected for drag chains, robotic systems or applications involving continuous bending without confirming its suitability. These applications usually require a cable engineered and tested for repeated flexing.
Is NSGAFÖU the same as H07RN-F rubber cable?
No. Both are rubber cables, but they are designed for different applications.
NSGAFÖU is a single-core, 1.8/3 kV cable commonly used for protected power connections, internal equipment wiring and short-circuit-proof or earth-fault-proof installations.
H07RN-F is generally a flexible multicore cable used for portable equipment, power supplies, tools, pumps and outdoor industrial applications.
The correct choice depends on the voltage, number of conductors, installation method, mechanical conditions and required approvals. View the broader LAPP Australia rubber cable range to compare available options.
How do you select the correct NSGAFÖU cable?
Consider the following factors before selecting a conductor size:
Cable selection and installation should be checked by a qualified electrical professional.
What NSGAFÖU cable sizes are available?
LAPP Australia lists NSGAFÖU 1.8/3 kV cables in the following conductor sizes:
1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240 and 300 mm²
Availability can vary by size. Visit the 3 kV single-core rubber cable range to view current products, specifications, pricing and availability.
Frequently Asked Questions
What is NSGAFÖU cable? +
NSGAFÖU is a flexible, VDE-approved single-core rubber power cable with a rated voltage of 1.8/3 kV. It is used in switchboards, machinery, control cabinets and other applications requiring high mechanical strength.
Is NSGAFÖU cable short-circuit-proof? +
NSGAFÖU can be used for short-circuit-proof and earth-fault-proof installation up to 1,000 V when installed according to the relevant requirements and approved wiring methods.
Is NSGAFÖU cable oil resistant? +
Yes. Its rubber construction is oil resistant and suitable for use in many industrial environments.
Is NSGAFÖU a flexible cable? +
Yes. It uses a fine-stranded Class 5 conductor that supports easier routing and termination. It is not automatically suitable for continuous-flex applications.
Can NSGAFÖU cable be used in control cabinets? +
Yes. Control-cabinet, switchboard and internal machinery wiring are key applications for this cable type.
Is NSGAFÖU halogen-free? +
Standard NSGAFÖU cable is not classified as halogen-free. Where halogen-free performance is required, NSHXAFO may be a more suitable option. The application and required approvals should be checked before selection.
What sizes are available from LAPP Australia? +
LAPP Australia lists conductor sizes from 1.5 mm² to 300 mm². Current pricing and availability can be checked through the online range.
Where can I buy NSGAFÖU cable in Australia? +
NSGAFÖU 1.8/3 kV cable is available from LAPP Australia in conductor sizes from 1.5 mm² to 300 mm². A wide range is locally stocked and can be shipped across Australia, with support available from LAPP Australia’s local team.
Find the right NSGAFÖU cable
The right NSGAFÖU cable depends on the operating voltage, current load, fault conditions, installation method and surrounding environment.
Explore LAPP Australia’s NSGAFÖU 1.8/3 kV cable range and check current sizes, pricing and availability online.
With a wide range locally stocked, Australia-wide delivery and support from a local Australian team, LAPP Australia can help you find the right cable for your application. Contact LAPP Australia for product selection or technical support.
